By default, the Stock lookup are the default. To change this to be replaced by the Button lookup, select (tick) this option. This should support Touchscreen technology.

Groups - Images and Colours

The Button lookup may be configured by adding images of your product groups and setting colours (background and font) in Setup → Groups (Stock group 1).

Product - Images

The Button lookup may be configured by adding images of your products on the Images tab of Stock items in the Stock items (Default ribbon).

The button lookup will display images added in the following options:

  • Setup → Groups (Stock group 1 tab) (Setup ribbon). These images will display as Stock groups on the Button lookup.
  • Stock items (Images tab) (Default ribbon). These images will display as Product images on the Button lookup

These images may be used on a touch screen.

To enable (activate) the Button lookup:

  1. Go to the Setup → Stock information.
  2. Select (tick) the “Button lookup” field.
  3. Click on the OK button. The Button lookup screen is displayed when selecting stock items while processing documents.

Examples of the Button lookup:

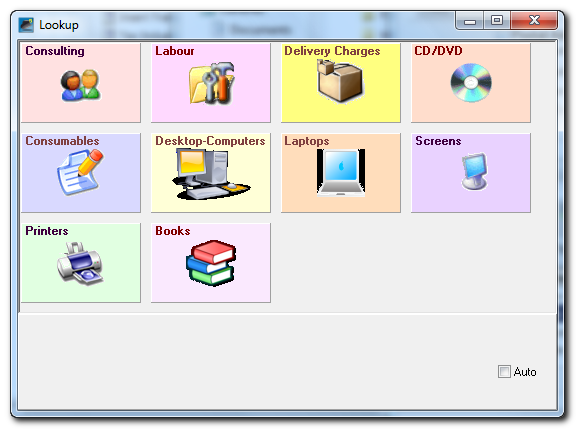

Stock lookup

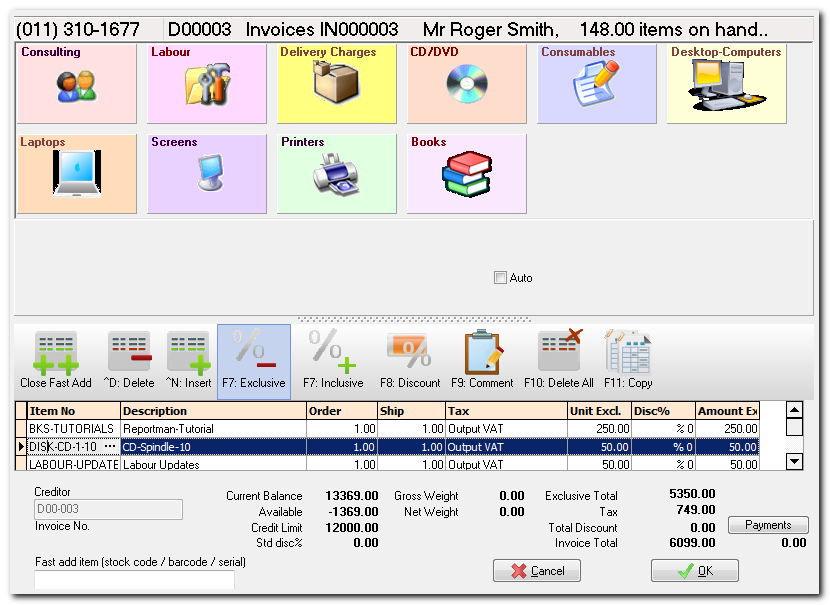

Fast Add - Document Entry
